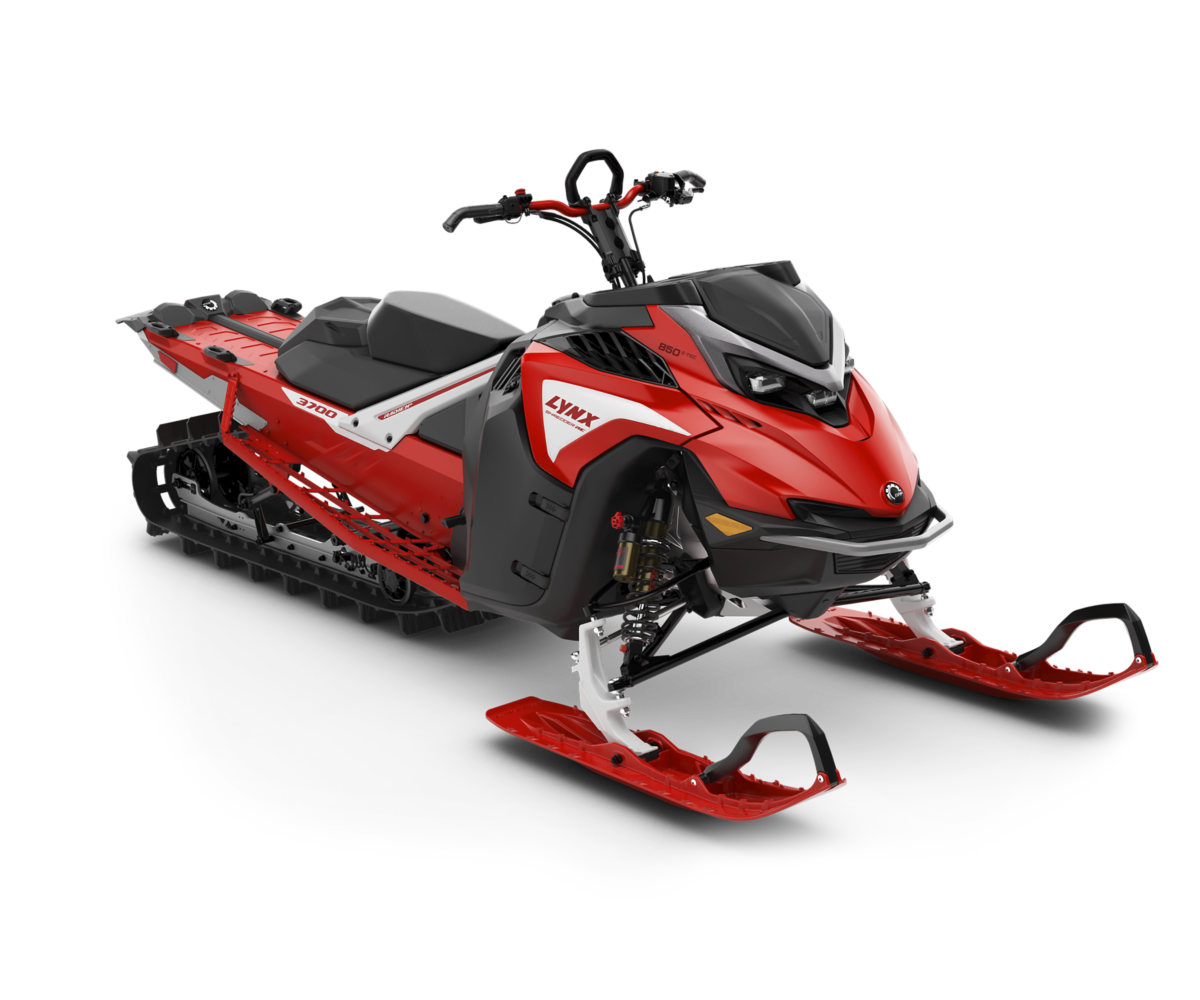

2023SHREDDER RE
-
Steep and deep
- Deep snow
- Rotax® 850 E-TEC Turbo R et 850 E-TEC engines
- PPS² DS+ rear suspension
- KYB 36 CR Kashima / KYB 46 / KYB 46 HLCR Kashima shocks
- Radien² platform
- 15 x 154 x 3 in. /15 x 165 x 3 in. PowderMax† Light tracks 15 x 154 x 2.5 in. PowderMax† Light track (option only on 3900)
![viper-red]()
For the fiercest of riding. Shredder RE, featuring the new Radien² platform, PPS² DS+ rear suspension and high quality KYB Kashima shocks, is the wildest deep snow sled on the market. The raw power is provided by the Rotax® 850 E-TEC / E-TEC Turbo R engines.
-
Engine
Rotax® 850 E-TEC, Rotax® 850 E-TEC Turbo R
-
Rear suspension
PPS² DS+ -3700 -3900 rear suspension, KYB 46 & 46 HLCR Kashima shocks
-
Front suspension
LFS front suspension, 921 mm ski stance, KYB 36 CR Kashima shocks
-
Track
15 x 146 x 2.5 in. PowderMax† and 15 x 154 x 3 in. PowderMax† Light tracks
-
Special features
Short tunnel, short snow flap, LED lights,10.25" Color Display with BRP Connect, adjustable Kashima coated shocks, adjustable brake lever, SHOT starter, Shredder seat and Blade DS+ skis
Engine Engine - 850 E-TEC
850 E-TEC Turbo R
Engine details - Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Liquid-cooled, two-stroke, turbocharged, 3-D R.A.V.E.™
Cylinders - 2
Cylinders & Displacement - 849 cc
Bore - 82 mm
Stroke - 80.4 mm
Maximum engine speed - 7900 RPM
Carburation - Electronic Direct Injection with additional booster injectors
Recommended fuel type - Unleaded
Minimum octane - 91
Fuel tank - 37 L / 9.8 gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Power Train Drive clutch type - pDrive™ with clickers
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, adjustable brake lever, plastic master cylinder with protector
Dimensions Vehicle Overall Length - 122.8 in.
124 in.
Vehicle Overall Width - 44 in.
Vehicle Overall Height - 50.4 in.
Ski Stance - 36 in.
Track Length x Width x Profile - PowderMax† : 146 x 15 x 2.5 in.
PowderMax† Light : 154 x 15 x 3 in.
Suspensions Front suspension - LFS
Front shock - KYB 36 Kashima
Rear suspension - PPS²-DS+ -3700 PPS²-DS+ -3900
Center shock - KYB 46 HLCR Kashima
Rear shock - KYB 46 Kashima
Feature Frame - Radien²
Skis - Blade DS+
Seating - Shredder DS, 1-up
Handlebar - U-type aluminium with hooks, low grab handle
Riser block height - 145 mm
Starter - Manual with SHOT
Reverse - RER
Heated throttle lever - Standard
Heated grips - Standard
Gauge - Compact Digital Display
10.25 in. color display with BRP Connect (Option already sold out for the 2022-2023 season)
12V power outlet - Yes, in front compartment
LinQ Attachment - 2 pairs
-
-

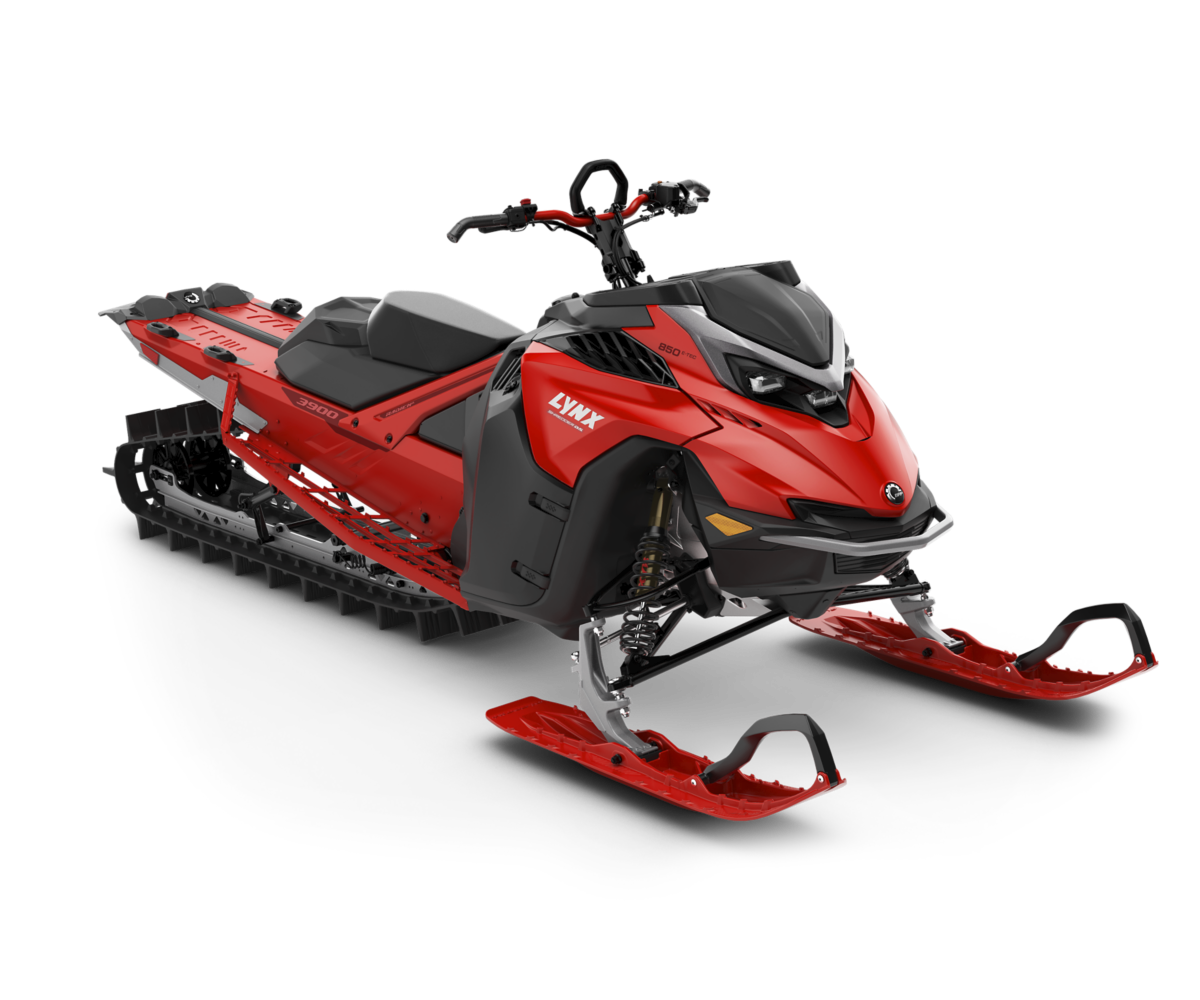

2023SHREDDER DS
-
Steep and deep
- Deep snow
- Rotax® 850 E-TEC and 850 E-TEC Turbo R engines
- PPS² DS+ rear suspension
- KYB 36 Kashima shocks
- Radien² platform
- 15 x 154 x 3 in. /15 x 165 x 3 in. PowderMax†3 LgtLarge track 15 x 154 x 2.5 in. PowderMax† Light track (option only on 3900)
![viper-red]()
For the deepest snow and steepest slopes. The Shredder DS dazzles with its deep snow performance. Unmatched agility and handling precision thanks to the new Radien² platform and narrow design.
-
Engine
Rotax® 850 E-TEC, Rotax® 850 E-TEC Turbo R
-
Rear suspension
PPS² DS+ -3900 -4100 rear suspension, KYB 36 Kashima shocks
-
Front suspension
LFS front suspension, 921 mm ski stance, KYB 36 shocks
-
Track
PowderMax† Light 15 x 154 x 3 in. /15 x 165 x 3 in. and PowderMax† 15 x 154 x 2.5 in. (option only on 3900)
-
Special features
Short tunnel, short snow flap, LED lights,10.25" Color Display with BRP Connect, adjustable brake lever, SHOT starter, Shredder DS seat and Blade DS+ skis
Engine Engine - 850 E-TEC
850 E-TEC Turbo R
Engine details - Liquid-cooled, two-stroke, 3-D R.A.V.E.™
Liquid-cooled, two-stroke, turbocharged, 3-D R.A.V.E.™
Cylinders - 2
Cylinders & Displacement - 849 cc
Bore - 82 mm
Stroke - 80.4 mm
Maximum engine speed - 7900 RPM
Carburation - Electronic Direct Injection with additional booster injectors
Recommended fuel type - Unleaded
Minimum octane - 91
Fuel tank - 37 L / 9.8 gal
Oil tank capacity (2-stroke) - 3.4 L / 3.6 qt
Power Train Drive clutch type - pDrive™ with clickers
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, adjustable brake lever, plastic master cylinder with protector
Dimensions Vehicle Overall Length - 128 in. (3900)
133 in. (4100)
Vehicle Overall Width - 44 in.
Vehicle Overall Height - 50.4 in.
Ski Stance - 36 in.
Track Length x Width x Profile - PowderMax† Light :
154 x 15 x 2.5 in.
165 x 15 x 3 in.
Suspensions Front suspension - LFS
Front shock - KYB 36 Kashima
Rear suspension - PPS²-DS+ -3900 PPS²-DS+ -4100
Center shock - KYB 36 Kashima
Rear shock - KYB 36 Kashima
Feature Frame - Radien²
Skis - Blade DS+
Seating - Shredder DS, 1-up
Handlebar - U-type aluminium with hooks, low grab handle
Riser block height - 120 mm
Starter - Manual with SHOT
Reverse - RER
Heated throttle lever - Standard
Heated grips - Standard
Gauge - Compact Digital Display
10.25 in. color display with BRP Connect (Option already sold out for the 2022-2023 season)
12V power outlet - Yes, in front compartment
LinQ Attachment - 2 pairs
-
Download spec sheet
