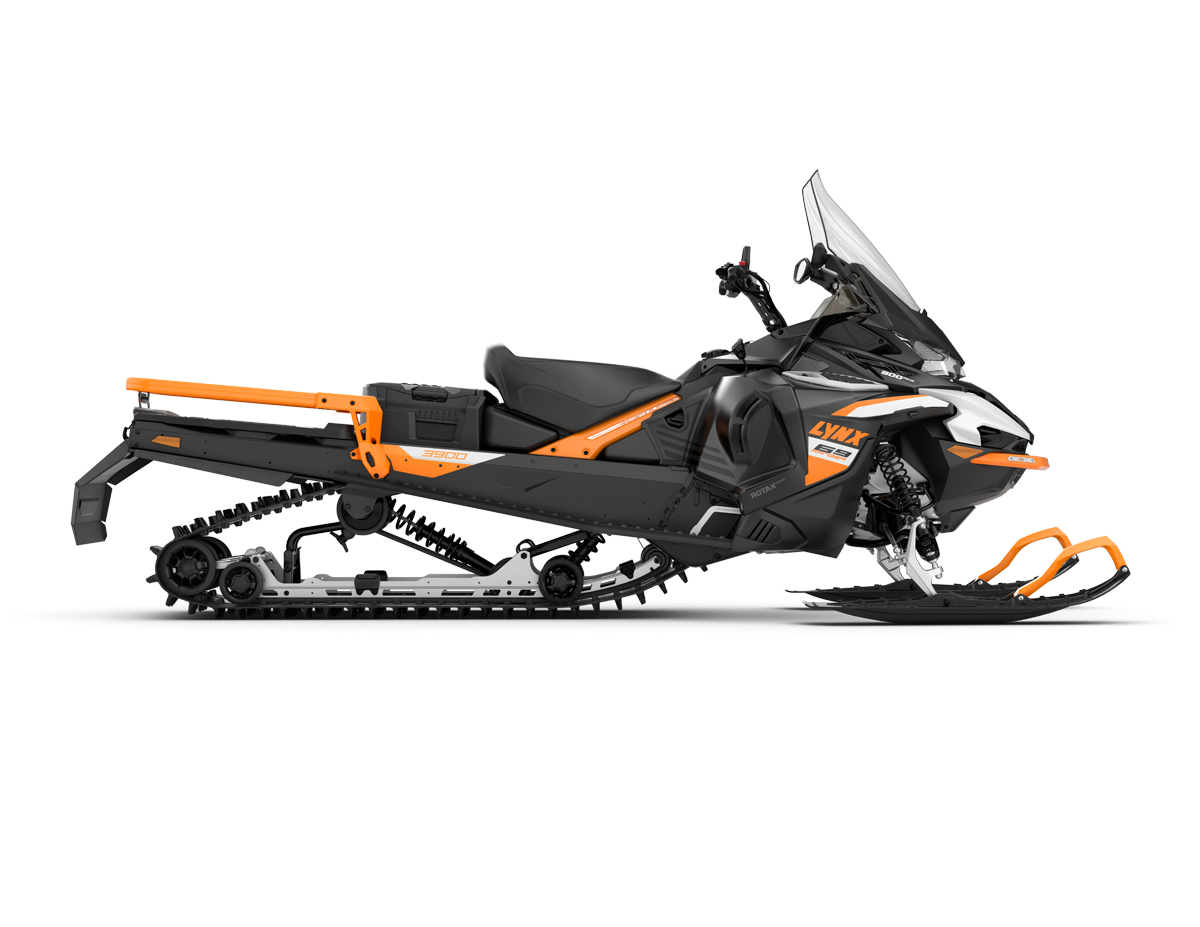

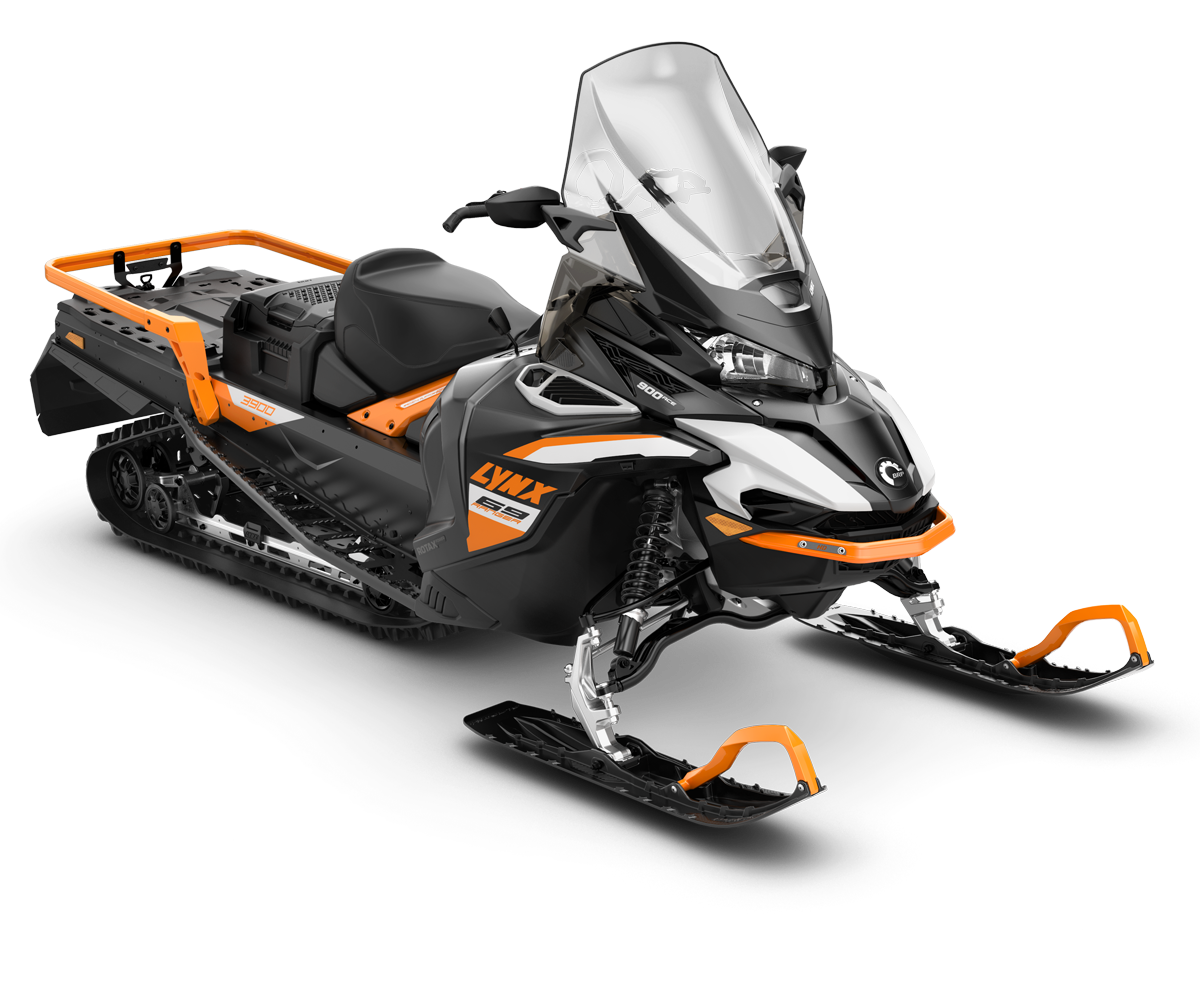

202269 RANGER
-
Heavy Duty Work
- Recreation Utility
- Deep snow
- On & Off Trail
- Rotax 900 ACE engine, 95 horsepower
- EasyRide rear suspension / LFS front suspension
- HPG 36 shocks
- 996 mm ski stance
- 600 x 3968 x 38 mm track
![white---orange---black]()
A versatile, wide track snowmobile for demanding tasks. The 600 x 3968 x 38 mm track and EasyRide-A rear suspension ensure superb traction and almost endless grip when hauling a load. Radien-X chassis takes the characteristics and the ride comfort to a new level.
-
Engine
Rotax 900 ACE
-
Rear suspension
EasyRide rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension (bended lower A-arms), 996 mm ski stance, HPG 36 shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, Modular seat with heating, heavy-duty front bumper, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE
Engine details - Liquid-cooled, four-stroke D.O.H.C., dry sump
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7250 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive with slider shoes
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS with bended lower A-Arms
Front shock - HPG 36
Rear suspension - EasyRide
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 4.5-in. digital display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Front
-
-

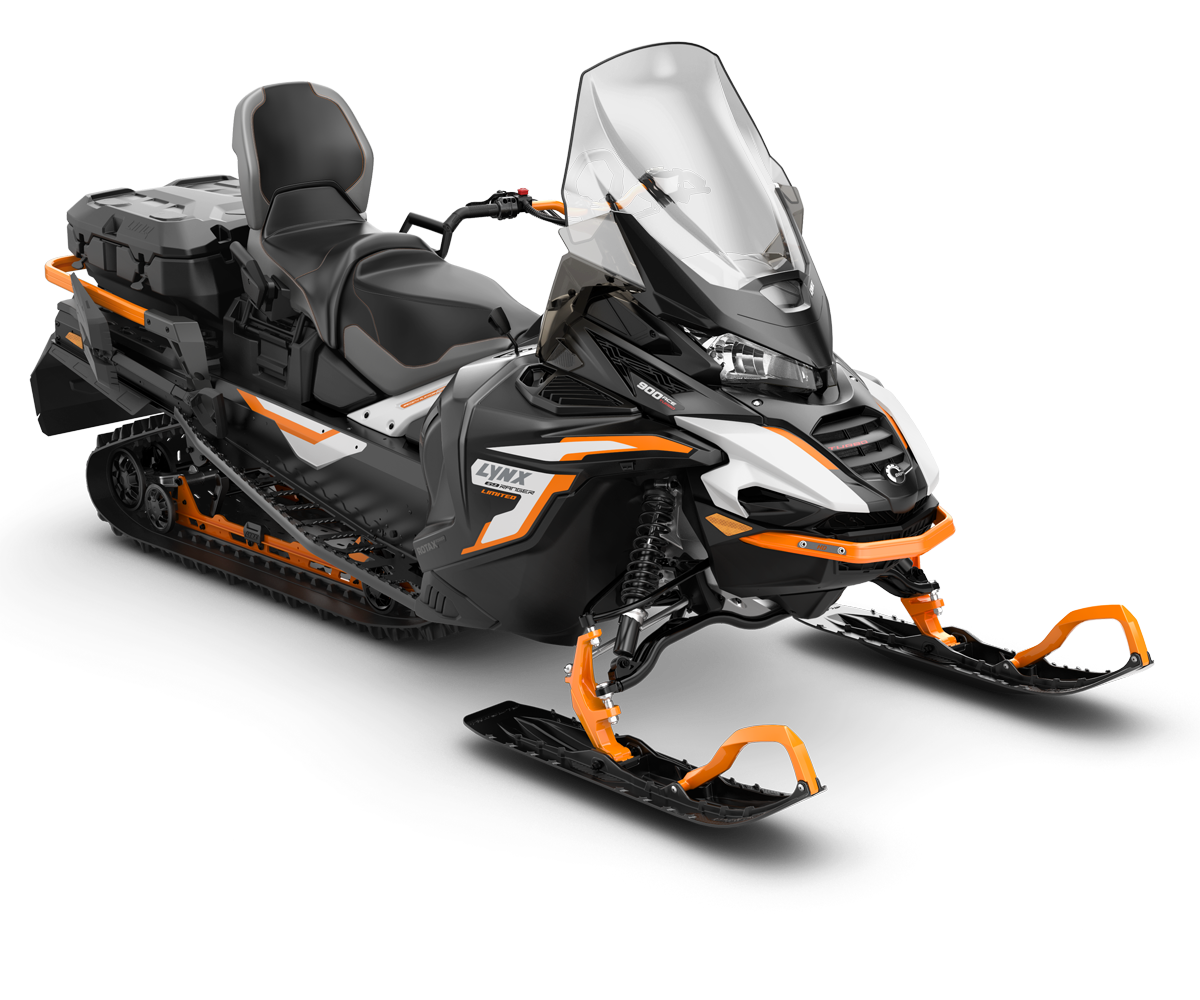

202269 RANGER LIMITED
-
Heavy Duty Work
- Recreation Utility
- Deep snow
- On & Off Trail
- Rotax 900 ACE Turbo engine, 150 horsepower
- EasyRide rear suspension / LFS front suspension
- HPG 36 shocks
- 996 mm ski stance
- 600 x 3968 x 38 mm track
![white---orange---black]()
The new 69 Ranger Limited is a unique combination of great flotation, high performance offered by Rotax 900 ACE Turbo and generous standard equipment. Thanks to the modular 1+1 seat and large cargo space, this model is perfect for long distance winter adventures.
-
Engine
Rotax 900 ACE Turbo
-
Rear suspension
EasyRide rear suspension with adjustment, HPG 36 shocks
-
Front suspension
LFS front suspension (bended lower A-arms), 996 mm ski stance, HPG 36 shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, 1+1 Modular seat, 70 L LinQ cargo box, shovel, heavy-duty front bumper, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE Turbo
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7750 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS with bended lower A-Arms
Front shock - HPG 36
Rear suspension - EasyRide with adjustment
Center shock - HPG 36
Rear shock - HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1+1
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 145 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Front
-
-
-

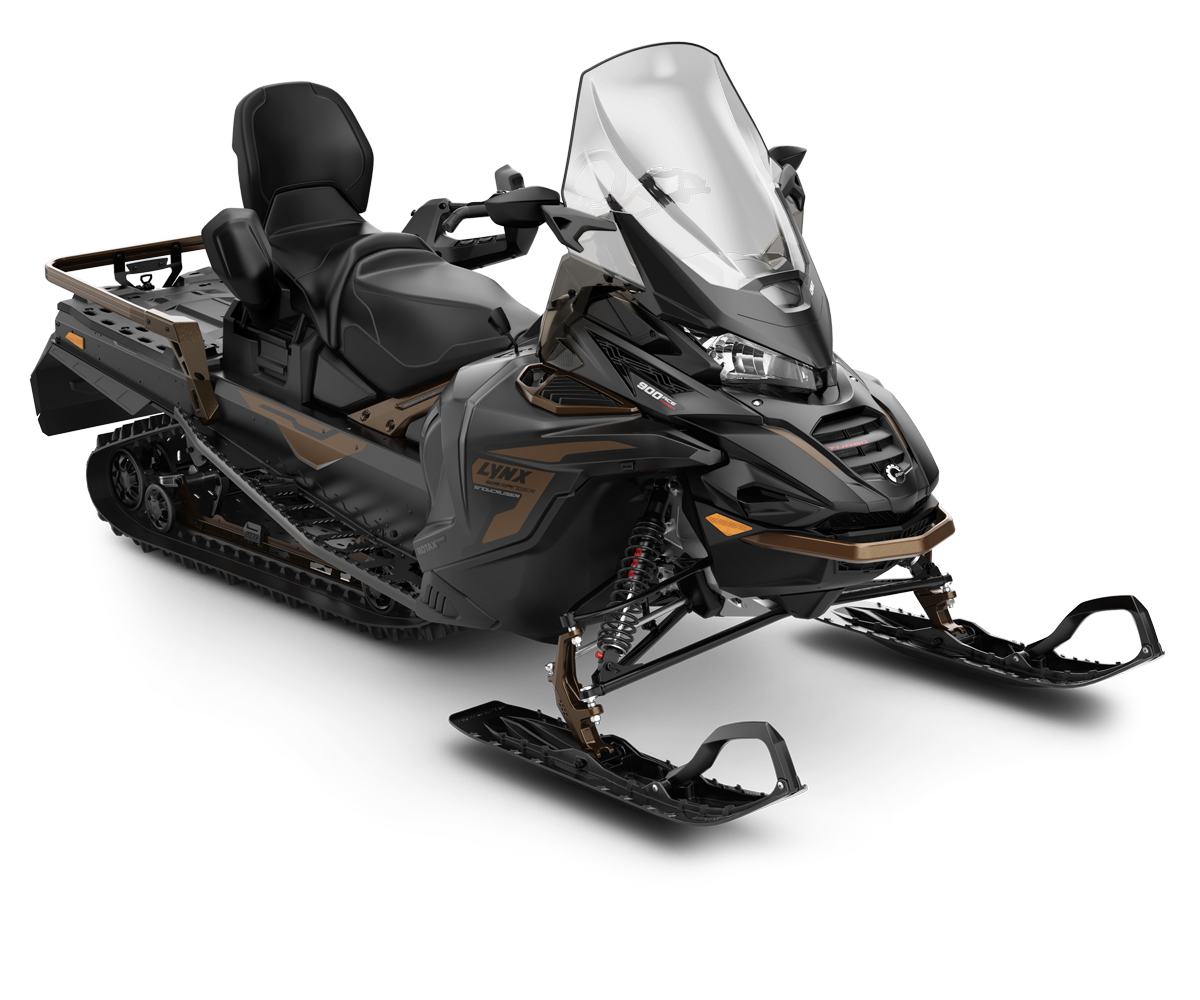

On & Off Trail
- Family Fun
- Recreation Utility
- Heavy Duty Work
- Deep snow
- Trail
- Rotax 900 ACE Turbo engine, 150 horsepower
- EasyRide rear suspension / LFS front suspension
- KYB 36 R and KYB 46 Kashima shocks
- 1080 mm ski stance
- 600 x 3968 x 38 mm track
![noble-bronze---black]()
A luxuriously equipped wide track snowmobile. Extravagant comfort. Vigorous performance. EasyRide-A rear suspension provides controlled weight transfer. High-performance KYB Kashima 46 shock absorbers carry the load evenly. A very powerful Rotax 900 ACE Turbo four-stroke engine perfects the riding pleasure.
-
Engine
Rotax 900 ACE Turbo
-
Rear suspension
EasyRide rear suspension with adjustment, KYB 46 Kashima shocks
-
Front suspension
LFS front suspension 1080 mm ski stance KYB 36 R shocks
-
Track
600 x 3968 x 38 mm
-
Special features
Multi-LinQ plate, hitch, Luxury Modular 1+1 seat with heating, adjustable handlebar riser, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis and iTC system with three driving modes
Engine Engine - 900 ACE Turbo
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7750 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive
Driven clutch type - QRS
Brake system - Hydraulic brake with braided steel brake line, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - KYB 36 R
Rear suspension - EasyRide with adjustment
Center shock - KYB 46 Kashima
Rear shock - KYB 46 Kashima
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Luxury Modular 1+1 with heating
Handlebar - U-type steel with hooks, low grab handle
Riser block height - Adjustable 125-165 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
7.8-in. large panoramic wide LCD color display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front/Rear
12V power outlet - Front
-
-

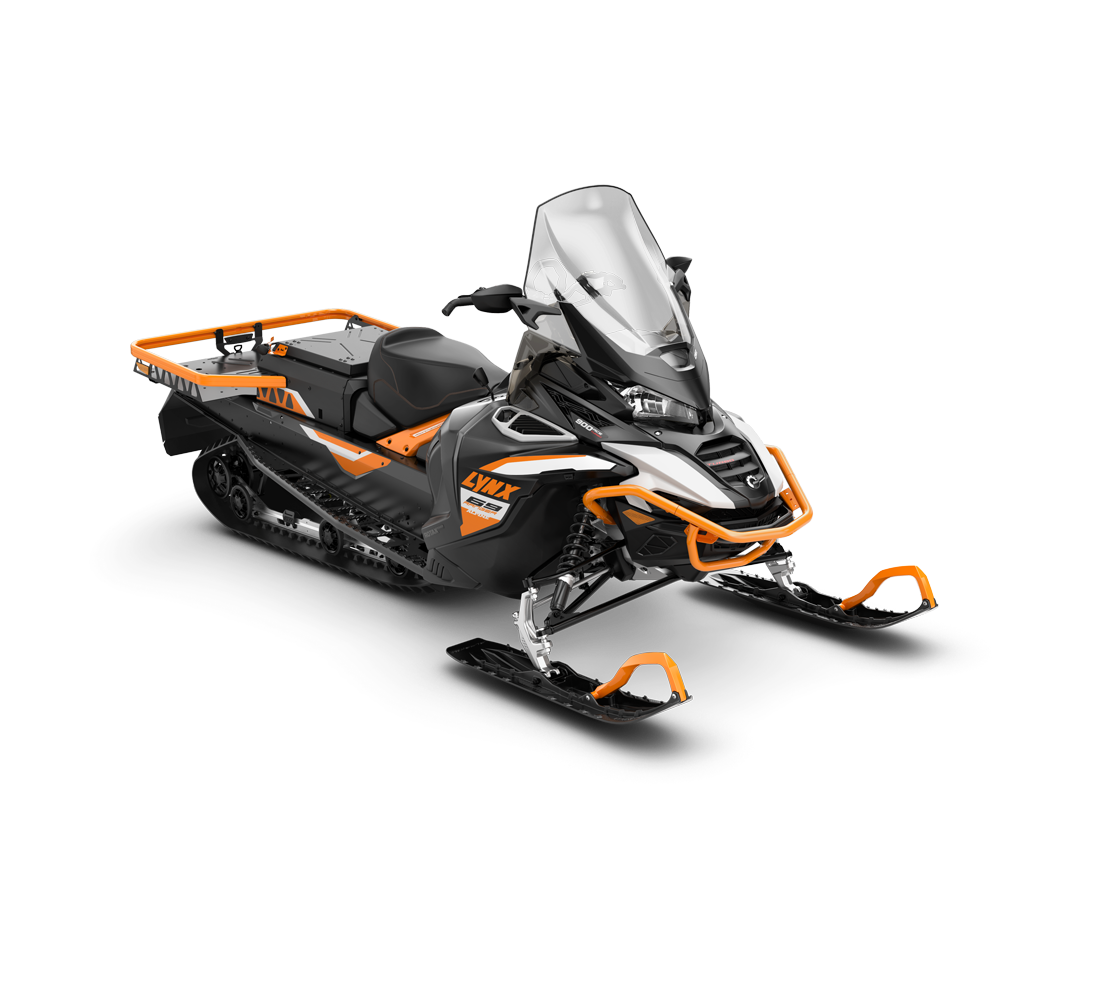

202269 RANGER ALPINE
-
Heavy Duty Work
- Recreation Utility
- On & Off Trail
- Trail
- Rotax 900 ACE Turbo engine, 150 horsepower
- EasyRide rear suspension / LFS front suspension
- HPG 36 shocks
- 1080 mm ski stance
- 600 x 3968 x 32 mm studded track
![white---orange---black]()
A factory-ready heavy-duty snowmobile for ski resorts and other demanding utility use. The power of Rotax 900 ACE Turbo engine is transmitted to the super wide track even in high altitude. The EasyRide Alpine rear suspension and generous standard equipment perfect the strong utility features.
-
Engine
Rotax 900 ACE Turbo
-
Rear suspension
EasyRide rear suspension, HPG 36 shocks
-
Front suspension
LFS front suspension, 1080 mm ski stance, HPG 36 shocks
-
Track
600 x 3968 x 32 mm studded
-
Special features
Rear rack, hitch, Modular seat with heating, heavy-duty front bumper, 7.2-in. wide digital display, air radiator with fan, 2F/N/R gearbox with push-button reverse, Blade DS+ skis, iTC system with three driving modes and readiness for Alpine accessories
Engine Engine - 900 ACE Turbo
Engine details - Liquid-cooled, four-stroke D.O.H.C., turbocharged
Cylinders - 3
Cylinders & Displacement - 899.0 cc
Bore - 74 mm
Stroke - 69.7 mm
Maximum engine speed - 7750 RPM
Carburation - EFI
Recommended fuel type - Unleaded
Minimum octane - 95
Fuel tank - 42 liters
Power Train Drive clutch type - pDrive
Driven clutch type - QRS
Brake system - RS brake with 4 piston caliber, plastic master cylinder
Suspensions Front suspension - LFS
Front shock - HPG 36
Rear suspension - EasyRide Alpine
Center shock - HPG 36
Rear shock - 2 x HPG 36
Feature Frame - Radien-X
Skis - Blade DS+
Seating - Modular, 1-up heated
Handlebar - U-type steel with hooks, low grab handle
Riser block height - 140 mm
Starter - Electric
Reverse - Electromechanical
Heated throttle lever - Standard
Heated grips - Standard
Gauge - 7.2-in. wide digital display
Mirrors - Standard
Windshield - Extra high with side deflectors
Hitch - Standard
Visor Plug front / rear - Front
12V power outlet - Yes, in front compartment
-
Download spec sheet
